防水式固定法兰热电偶选型一览表
产品型号 | 分度号 | 温度范围 ℃ | 热响应时间 | 保护管材料 | 规 格(mm) | |
d | L x l | |||||
WRM-430
WRM2-430 |
N | 0-800 | <90S | 1Cr18Ni9Ti | Ø16 |
![]() 300x150 350x200 400x250 450x300 550x400 650x500 900x750 1150x1000 1650x1500 2150x2000 |
0-1000 | 0Cr25Ni20 | |||||
WRM-430G
WRM2-430G |
0-800 | <24S | 1Cr18Ni9Ti | |||
0-1000 | 0Cr25Ni20 | |||||
WRN-430
WRN2-430 |
K | 0-800 | <90S | 1Cr18Ni9Ti | ||
0-1000 | 0Cr25Ni20 | |||||
WRN-430G
WRN2-430G |
0-800 | <24S | 1Cr18Ni9Ti | |||
0-1000 | 0Cr25Ni20 | |||||
WRE-430
WRE2-430 |
E | 0-700 | <90S | 1Cr18Ni9Ti | ||
WRE-430G
WRE2-430G |
<24S | |||||
WRC-430
WRC2-430 |
T | 0-350 | <90S | 1Cr18Ni9Ti | ||
WRC-430G
WRC2-430G |
<24S | |||||
WRF-430
WRF2-430 |
J | 0-600 | <90S | 1Cr18Ni9Ti | ||
WRF-430G
WRF2-430G |
<24S | |||||
WRM-431
WRM2-431 |
N | 0-800 | <120S | 1Cr18Ni9Ti | Ø20 | |
0-1000 | 0Cr25Ni20 | |||||
WRM-431G
WRM2-431G |
0-800 | <24S | 1Cr18Ni9Ti | |||
0-1000 | 0Cr25Ni20 | |||||
WRN-431
WRN2-431 |
K | 0-800 | <120S | 1Cr18Ni9Ti | ||
0-1000 | 0Cr25Ni20 | |||||
WRN-431G
WRN2-431G |
0-800 | <24S | 1Cr18Ni9Ti | |||
0-1000 | 0Cr25Ni20 | |||||
WRE-431
WRE2-431 |
E | 0-700 | <120S | 1Cr18Ni9Ti | ||
WRE-431G
WRE2-431G |
<24S | |||||
WRC-431
WRC2-431 |
T | 0-350 | <120S | 1Cr18Ni9Ti | ||
WRC-431G
WRC2-431G |
<24S | |||||
WRF-431
WRF2-431 |
J | 0-600 | <120S | 1Cr18Ni9Ti | ||
WRF-431G
WRF2-431G |
<24S |

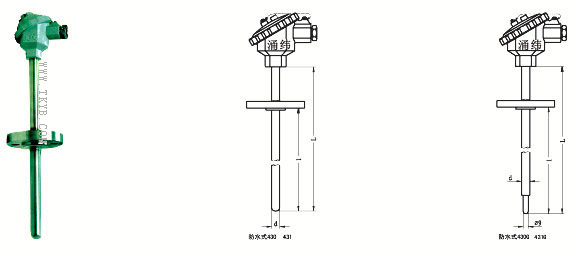

固定法兰规格示意图
1)型号420、421为防喷式,防护等jiIP65;
型号430、431为防水式,防护等jiIP65;
2)保护管其余材质根据协议订货;
3)公称压力为2.50MPa
