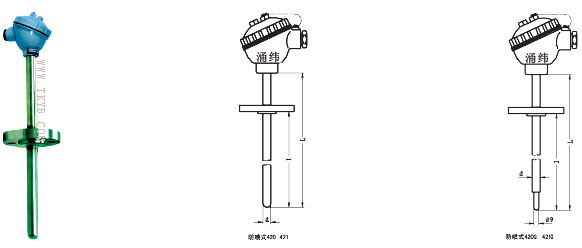

防喷式固定法兰热电偶选型一览表
产品型号 | 分度号 | 温度范围 ℃ | 热响应时间 | 保护管材料 | 规 格(mm) | |
d | L x l | |||||
WRM-420
WRM2-420 |
N | 0-800 | <90S | 1Cr18Ni9Ti | Ø16 |
![]()
300x150 350x200 400x250 450x300 550x400 650x500 900x750 1150x1000 1650x1500 2150x2000 |
0-1000 | 0Cr25Ni20 | |||||
WRM-420G
WRM2-420G |
0-800 | <24S | 1Cr18Ni9Ti | |||
0-1000 | 0Cr25Ni20 | |||||
WRN-420
WRN2-420 |
K | 0-800 | <90S | 1Cr18Ni9Ti | ||
0-1000 | 0Cr25Ni20 | |||||
WRN-420G
WRN2-420G |
0-800 | <24S | 1Cr18Ni9Ti | |||
0-1000 | 0Cr25Ni20 | |||||
WRE-420
WRE2-420 |
E | 0-700 | <90S | 1Cr18Ni9Ti | ||
WRE-420G
WRE2-420G |
<24S | |||||
WRC-420
WRC2-420 |
T | 0-350 | <90S | 1Cr18Ni9Ti | ||
WRC-420G
WRC2-420G |
<24S | |||||
WRF-420
WRF2-420 |
J | 0-600 | <90S | 1Cr18Ni9Ti | ||
WRF-420G
WRF2-420G |
<24S | |||||
WRM-421
WRM2-421 |
N | 0-800 | <120S | 1Cr18Ni9Ti | Ø20 | |
0-1000 | 0Cr25Ni20 | |||||
WRM-421G
WRM2-421G |
0-800 | <24S | 1Cr18Ni9Ti | |||
0-1000 | 0Cr25Ni20 | |||||
WRN-421
WRN2-421 |
K | 0-800 | <120S | 1Cr18Ni9Ti | ||
0-1000 | 0Cr25Ni20 | |||||
WRN-421G
WRN2-421G |
0-800 | <24S | 1Cr18Ni9Ti | |||
0-1000 | 0Cr25Ni20 | |||||
WRE-421
WRE2-421 |
E | 0-700 | <120S | 1Cr18Ni9Ti | ||
WRE-421G
WRE2-421G |
<24S | |||||
WRC-421
WRC2-421 |
T | 0-350 | <120S | 1Cr18Ni9Ti | ||
WRC-421G
WRC2-421G |
<24S | |||||
WRF-421
WRF2-421 |
J | 0-600 | <120S | 1Cr18Ni9Ti | ||
WRF-421G
WRF2-421G |
<24S |

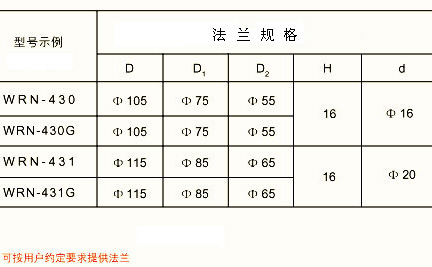

固定法兰规格
1)型号420、421为防喷式,防护等jiIP65;
型号430、431为防水式,防护等jiIP65;
2)保护管其余材质根据协议订货;
3)公称压力为2.50MPa
