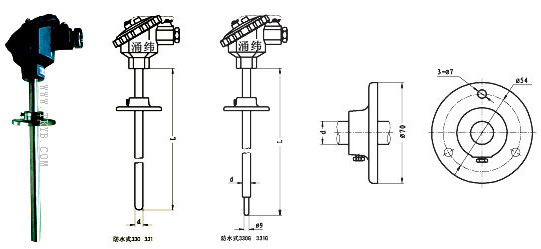

活动法兰式热电偶
防水式活动法兰热电偶选型一览表
产品型号 | 分度号 | 温度范围 ℃ | 热响应时间 | 保护管材料 | 规 格(mm) | |
d | L | |||||
WRM-330
WRM2-330 |
N | 0-800 | <90S | 1Cr18Ni9Ti | Ø16 |
150 200 250 300 400 500 750 1000 1500 2000 2150 |
0-1000 | 0Cr25Ni20 | |||||
WRM-330G
WRM2-330G |
0-800 | <24S | 1Cr18Ni9Ti | |||
0-1000 | 0Cr25Ni20 | |||||
WRN-330
WRN2-330 |
K | 0-800 | <90S | 1Cr18Ni9Ti | ||
0-1000 | 0Cr25Ni20 | |||||
WRN-330G
WRN2-330G |
0-800 | <24S | 1Cr18Ni9Ti | |||
0-1000 | 0Cr25Ni20 | |||||
WRE-330
WRE2-330 |
E | 0-700 | <90S | 1Cr18Ni9Ti | ||
WRE-330G
WRE2-330G |
<24S | |||||
WRC-330
WRC2-330 |
T | 0-350 | <90S | 1Cr18Ni9Ti | ||
WRC-330G
WRC2-330G |
<24S | |||||
WRF-330
WRF2-330 |
J | 0-600 | <90S | 1Cr18Ni9Ti | ||
WRF-330G
WRF2-330G |
<24S | |||||
WRM-331
WRM2-331 |
N | 0-800 | <120S | 1Cr18Ni9Ti | Ø20 | |
0-1000 | 0Cr25Ni20 | |||||
WRM-331G
WRM2-331G |
0-800 | <24S | 1Cr18Ni9Ti | |||
0-1000 | 0Cr25Ni20 | |||||
WRN-331
WRN2-331 |
K | 0-800 | <120S | 1Cr18Ni9Ti | ||
0-1000 | 0Cr25Ni20 | |||||
WRN-331G
WRN2-331G |
0-800 | <24S | 1Cr18Ni9Ti | |||
0-1000 | 0Cr25Ni20 | |||||
WRE-331
WRE2-331 |
E | 0-700 | <120S | 1Cr18Ni9Ti | ||
WRE-331G
WRE2-331G |
<24S | |||||
WRC-331
WRC2-331 |
T | 0-350 | <120S | 1Cr18Ni9Ti | ||
WRC-331G
WRC2-331G |
<24S | |||||
WRF-331
WRF2-331 |
J | 0-600 | <120S | 1Cr18Ni9Ti | ||
WRF-331G
WRF2-331G |
<24S |
1)型号120、121为防喷式,防护等jiIP65;
型号130、131为防水式,防护等jiIP65;
2)保护管其余材质根据协议订货;
