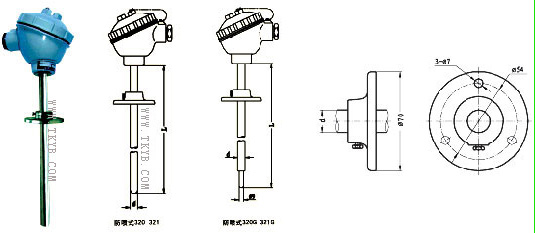

防喷式活动法兰热电偶
防喷式活动法兰热电偶选型一览表
产品型号 | 分度号 | 温度范围 ℃ | 热响应时间 | 保护管材料 | 规 格(mm) | |
d | L | |||||
WRM-320
WRM2-320 |
N | 0-800 | <90S | 1Cr18Ni9Ti | Ø16 | 150 200 250 300 400 500 750 1000 1500 2000 2150 |
0-1000 | 0Cr25Ni20 | |||||
WRM-320G
WRM2-320G |
0-800 | <24S | 1Cr18Ni9Ti | |||
0-1000 | 0Cr25Ni20 | |||||
WRN-320
WRN2-320 |
K | 0-800 | <90S | 1Cr18Ni9Ti | ||
0-1000 | 0Cr25Ni20 | |||||
WRN-320G
WRN2-320G |
0-800 | <24S | 1Cr18Ni9Ti | |||
0-1000 | 0Cr25Ni20 | |||||
WRE-320
WRE2-320 |
E | 0-700 | <90S | 1Cr18Ni9Ti | ||
WRE-320G
WRE2-320G |
<24S | |||||
WRC-320
WRC2-320 |
T | 0-350 | <90S | 1Cr18Ni9Ti | ||
WRC-320G
WRC2-320G |
<24S | |||||
WRF-320
WRF2-320 |
J | 0-600 | <90S | 1Cr18Ni9Ti | ||
WRF-320G
WRF2-320G |
<24S | |||||
WRM-321
WRM2-321 |
N | 0-800 | <120S | 1Cr18Ni9Ti | Ø20 | |
0-1000 | 0Cr25Ni20 | |||||
WRM-321G
WRM2-321G |
0-800 | <24S | 1Cr18Ni9Ti | |||
0-1000 | 0Cr25Ni20 | |||||
WRN-321
WRN2-321 |
K | 0-800 | <120S | 1Cr18Ni9Ti | ||
0-1000 | 0Cr25Ni20 | |||||
WRN-321G
WRN2-321G |
0-800 | <24S | 1Cr18Ni9Ti | |||
0-1000 | 0Cr25Ni20 | |||||
WRE-321
WRE2-321 |
E | 0-700 | <120S | 1Cr18Ni9Ti | ||
WRE-321G
WRE2-321G |
<24S | |||||
WRC-321
WRC2-321 |
T | 0-350 | <120S | 1Cr18Ni9Ti | ||
WRC-321G
WRC2-321G |
<24S | |||||
WRF-321
WRF2-321 |
J | 0-600 | <120S | 1Cr18Ni9Ti | ||
WRF-321G
WRF2-321G |
<24S |
1)型号120、121为防喷式,防护等jiIP65;
型号130、131为防水式,防护等jiIP65;
2)保护管其余材质根据协议订货;
3)公称压力为10MPa
