1、固定法兰式防爆热电偶选型一览表
产品型号 | 分度号 | 温度范围 ℃ | 热响应时间 | 保护管材料 | 规 格(mm) | |

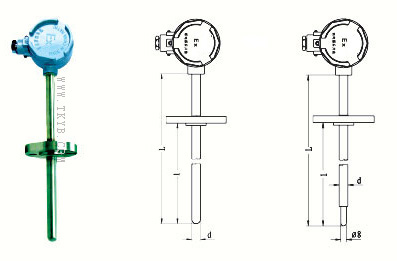

d | L x l | |||||
WRM-440
WRM2-440 |
N | 0-800 | <90S | 1Cr18Ni9Ti | Ø16 | 300x150 350x200 400x250 450x300 550x400 650x500 900x750 1150x1000 1650x1500 2150x2000 |
0-1000 | 0Cr25Ni20 | |||||
WRM-440G
WRM2-440G |
0-800 | <24S | 1Cr18Ni9Ti | |||
0-1000 | 0Cr25Ni20 | |||||
WRN-440
WRN2-440 |
K | 0-800 | <90S | 1Cr18Ni9Ti | ||
0-1000 | 0Cr25Ni20 | |||||
WRN-440G
WRN2-440G |
0-800 | <24S | 1Cr18Ni9Ti | |||
0-1000 | 0Cr25Ni20 | |||||
WRE-440
WRE2-440 |
E | 0-700 | <90S | 1Cr18Ni9Ti | ||
WRE-440G
WRE2-440G |
<24S | |||||
WRC-440
WRC2-440 |
T | 0-350 | <90S | 1Cr18Ni9Ti | ||
WRC-440G
WRC2-440G |
<24S | |||||
WRF-440
WRF2-440 |
J | 0-600 | <90S | 1Cr18Ni9Ti | ||
WRF-440G
WRF2-440G |
<24S |
2、法兰尺寸
1)热电偶Iji按协议订货;
2)保护管其余材质根据协议订货;
3、选型须知
